ALD Technology Ltd


NAS-9100
Multi-Function Storage Server

Multi-Function

Network Attached Storage

Internet Gateway

Firewall

DHCP Server

WINS Server

Windows Domain Controller

Enhanced Data Security

Central management enforces security policies

More affordable data protection schemes

Rapid Deployment

Easy installation and configuration

Scaleable without Network Downtime

Reduced IT support costs

Intuitive web-based setup

Centralized data backup

	ALD NAS-9100 is a powerful, multi-function broadband storage server. With NAS 9100's pre-loaded software modules, you can turn your organization into a true Internet-ready workplace in less than 30 minutes. The Network Attached Storage (NAS) architecture scales with your organization's growth without a glitch. Doubling the storage capacity is as simple as adding another NAS-9100. Flexible user grouping and sophisticated password protection let you manage and monitor access to the data stored in NAS-9100. Centralized storage eliminates the need for backup by individual users and makes sophisticated data protection more affordable.

	Built-in Internet Gateway, DHCP server, NAT and Firewall allow shared Internet access through switched Ethernet, ADSL or dial-up connections. Best of all, everything is centrally managed from an browser based user interface, simplifying the set-up and configuration. Customers with high availability requirements can choose enhanced models with RAID 1 and even auto-fail-over capabilities.

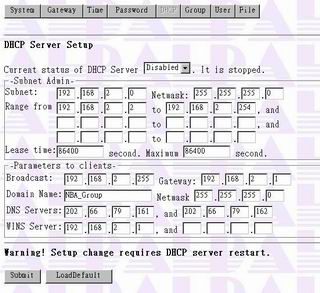

click to enlarge

click to enlarge

	Specifications

	Software
	Operating System	Linux Kernel 2.4.7
	Software Features	User log-on and password validation User grouping Disk quota support Built-in Firewall, Internet Gateway and NAT DHCP server Windows Domain Controller emulation HTTP server management interface

	Hardware
	Processor	733 MHz Intel socket 370 or compatible
	Memory	256/512 MB
	NIC	Embedded 10/100 Base-T Ethernet interface
	Power ON/OFF	Monitor/Keyboard-free, intelligent control
	HDD Interface	ATA66
	Drive Bay	One 3.5 inch drive
	I/O Ports	Serial/Parallel/PS 2 keyboard & mouse
	Power	Internal, universal switching mode power supply 100-245V, 50-60 Hz input
	Dimensions	280x262x68mm (Width/Depth/Height)
	Weight	3.5 Kg

	Environment
	Operating	5-35 degree C 10%-80% humidity (non-condensing)
	Non-operating	0-50 degree C 5%-90% humidity (non-condensing)
