EEP100
Digital Video Capture Board
  EEP100 combines a 16-channel capture engine, a 16-to-8 Cross-bar and an I/O Handler in a compact PCI card. With the 16-to-8 cross-bar, a user can select and switch any of the 16 cameras to one of 4 monitors for Realtime and Full Size viewing. Advanced circuitry enables fast switching of unsynchronized cameras for input to 4 parallel-working digitizers for maximum image capture. Two high performance serial ports, coupled with normal system serial ports, provide sufficient interfaces for PTZ camera control, ATM/EPOS, dial-up modem and UPS. Up to 40 I/O lines are available for sohpisticated sensor and control manipulation. Aiming for top reliability and maximum availability, extra circuitry is integrated to protect against transient voltage surges and electrostatic build-up in various diversified applications.
technical specification...


Key Features
up to 16 camera inputs (NTSC or PAL) per board
maximum 4 EEP100 per system to support 64 camera inputs
4 digitizers working in parallel
high recording frame rate (120 FPS NTSC; 100 FPS PAL)

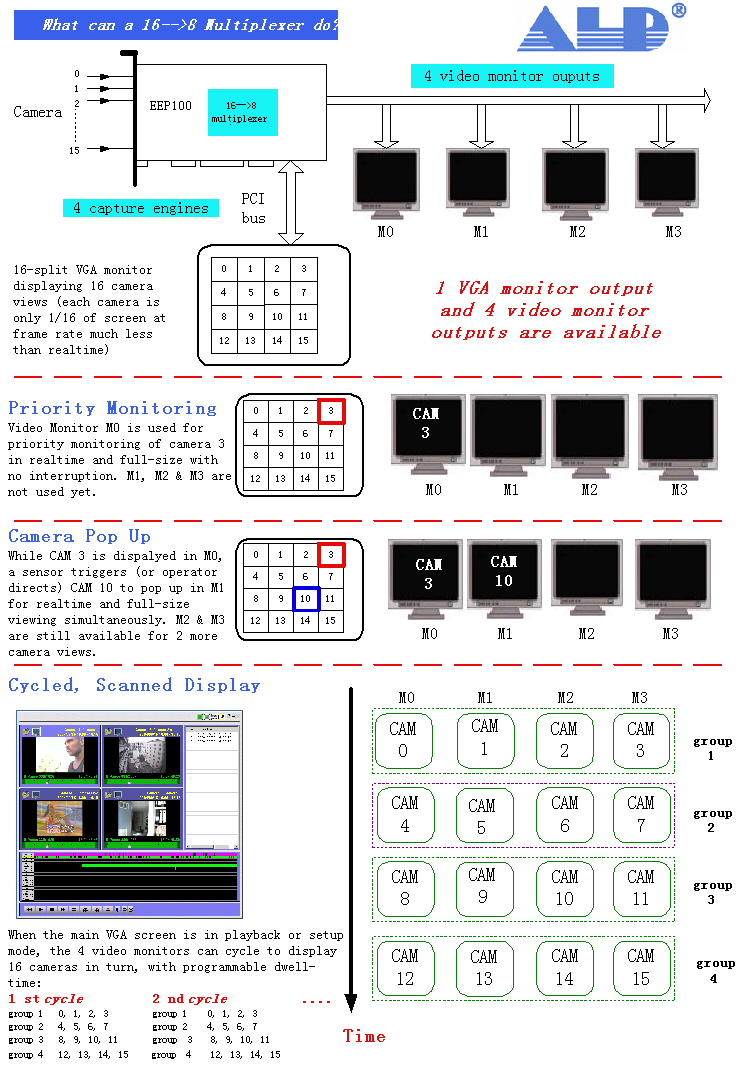

integrated 16-to-8 video cross-bar
V-sync separators for fast channel switching
four channels of audio capture with prgrammable gain control
two industrial grade serial ports (RS485/RS232 configurability)
high power, high speed surge suppression circuitry
electrostatic protection for every I/O line
hardware watchdog timer for system integrity monitoring
24 TTL inputs and 16 TTL outputs
modular and expandable video and I/O modules
maximum 4 capture boards in a system
drivers for Windows 2000/XP
sample software with source code for video/audio capture and I/O control
